RTW TouchControl 5 Control & Meter

Description

Technical Overview

RTW TouchControl 5 Control & Meter is an immersive monitoring controller designed for studio environments. This user-configurable desktop unit features a 5″ touch display and a 32-channel Dante AoIP interface, supporting stereo, surround, and immersive speaker formats, including 5.1 and 7.1.4. It operates as hardware, providing essential functions such as speaker level calibration, SPL measurement, and bass management, along with loudness metering. The device supports sampling rates of up to 24 bit / 96 kHz, ensuring high fidelity in audio monitoring and analysis.

Main Specifications

• 32-channel Dante AoIP interface for versatile audio routing
• Sampling rates up to 24 bit / 96 kHz for high-resolution audio
• Built-in microphone preamplifier with +48 V phantom power
• Volume control with mute or DIM function for flexible sound management
• Speaker level calibration and SPL measurement for accurate monitoring
• Dimensions: 155.4 x 143 x 46.5 mm
• Power supply via PoE or optional external power supply (not included)
• Connections: 1 DANTE Ethernet port, 1 XLR microphone input, 1 stereo headphone output (6.3 mm jack), 1 stereo line output (3.5 mm mini jack)

Functional Advantages

• 32-channel level measurement → enables comprehensive audio monitoring across multiple channels.
• Built-in microphone for talkback and SPL measurements → facilitates real-time communication and accurate sound level assessments.
• Speaker level calibration → ensures consistent sound output across different listening environments.
• Volume control with mute or DIM function → provides flexibility in managing audio levels without disrupting workflow.

Studio Application

In a professional or home studio workflow, RTW TouchControl 5 Control & Meter integrates seamlessly for recording, mixing, and mastering processes. It enables sound designers to monitor audio in various formats, including stereo and immersive setups. The built-in microphone and SPL measurement capabilities assist in maintaining accurate sound levels during production. The device’s Dante AoIP interface allows for easy integration with digital audio workstations (DAWs) and other networked audio systems, enhancing collaboration and efficiency in studio operations.

Design or Interface

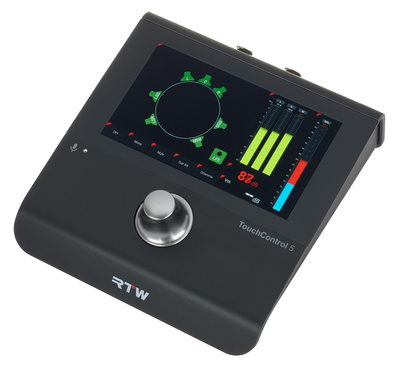

The physical design of RTW TouchControl 5 Control & Meter features a compact and user-friendly layout, making it suitable for desktop use. The 5″ touch display provides intuitive navigation and control over various settings. Connectivity options include a DANTE Ethernet port for audio networking, an XLR microphone input, and both headphone and line outputs. This design ensures efficient access to all functionalities while maintaining a streamlined workspace.

Performance and Reliability

RTW TouchControl 5 Control & Meter is engineered for stability and accuracy in audio monitoring tasks. It supports high sampling rates of up to 24 bit / 96 kHz, allowing for precise sound reproduction. The built-in microphone preamplifier with phantom power ensures reliable performance for vocal and SPL measurements. The device’s ability to connect via PoE enhances its reliability by reducing the need for multiple power sources, while its compact dimensions make it a practical choice for various studio environments.

Summary

RTW TouchControl 5 Control & Meter enhances professional studio setups by providing advanced monitoring capabilities. Its support for multiple audio formats and integration with Dante AoIP networks facilitates a flexible and efficient workflow. With features such as SPL measurement, speaker calibration, and user-friendly controls, it contributes to accurate sound production and management in both recording and mixing scenarios.
